If your precision machining supplier cannot produce a complete PPAP documentation package, you are taking on risk that belongs in their facility, not yours. Production Part Approval Process documentation is the difference between a supplier who claims quality and one who can prove it. For manufacturers in automotive, aerospace, and industrial sectors, demanding PPAP documentation machining compliance from your contract manufacturer is not bureaucratic overhead. It is the most reliable signal that your supplier's process is controlled, repeatable, and auditable. Here is what PPAP actually involves, why it matters in a machining context, and how to evaluate whether your supplier is genuinely equipped to support it.
Table of Contents
The 18 Elements of PPAP and Which Ones Matter Most in Machining
First Article Inspection Services: The Anchor of Any PPAP Package
PPAP vs. FAI vs. ISO Inspection: Understanding the Differences
ISO 13485 and Medical Device Machining: A Related Standard Worth Knowing
How to Evaluate Whether a Precision Machining Supplier Can Actually Support PPAP
Quick Takeaways
Key Insight
Explanation
PPAP is a process, not a single document
A full PPAP submission can include up to 18 elements, from design records to appearance approval reports. Your supplier must manage all of them systematically.
First Article Inspection is the physical proof in PPAP
FAI validates that the actual machined part matches the engineering drawing. Without CMM-verified dimensional data, the PPAP package is incomplete and unacceptable.
CMM programming capability is non-negotiable
Suppliers without in-house CMM programming cannot produce the dimensional inspection reports required for PPAP Levels 3, 4, and 5.
PPAP applies beyond automotive
While PPAP originated in the AIAG automotive supply chain, industrial manufacturers in aerospace, defense, and medical devices regularly require equivalent documentation packages.
PSW signature is not the finish line
The Part Submission Warrant is a summary, not proof. Customers should always request the full supporting documentation package, not just the signed PSW.
A2LA accreditation adds credibility to inspection data
Accreditation from the American Association for Laboratory Accreditation confirms that a supplier's measurement systems and calibration processes meet ISO/IEC 17025 standards.
Incomplete PPAP packages cause launch delays
Missing elements, unsigned warrants, or unverified gauge R&R studies are common reasons production launches stall. Choose a supplier who completes these before you ask.
What Is PPAP and Where Does It Come From?
PPAP stands for Production Part Approval Process. It was developed by the Automotive Industry Action Group (AIAG) as a standardized method for suppliers to demonstrate to customers that their manufacturing process can consistently produce parts meeting design requirements. The current reference document is the AIAG PPAP manual, now in its fourth edition.
PPAP became the dominant quality approval standard in North American automotive manufacturing and has since spread into aerospace, heavy equipment, defense, and general industrial manufacturing. If you are a Tier 1 or Tier 2 supplier to any OEM in these sectors, the odds are high that your customers already require some level of PPAP documentation.
The core purpose of PPAP is straightforward: prove that the production process, not just a one-off sample, will deliver conforming parts at volume. This distinction is critical. Many machine shops can produce a good first sample. Far fewer have the process controls, measurement systems, and documentation infrastructure to prove that the 500th part will match the 1st.

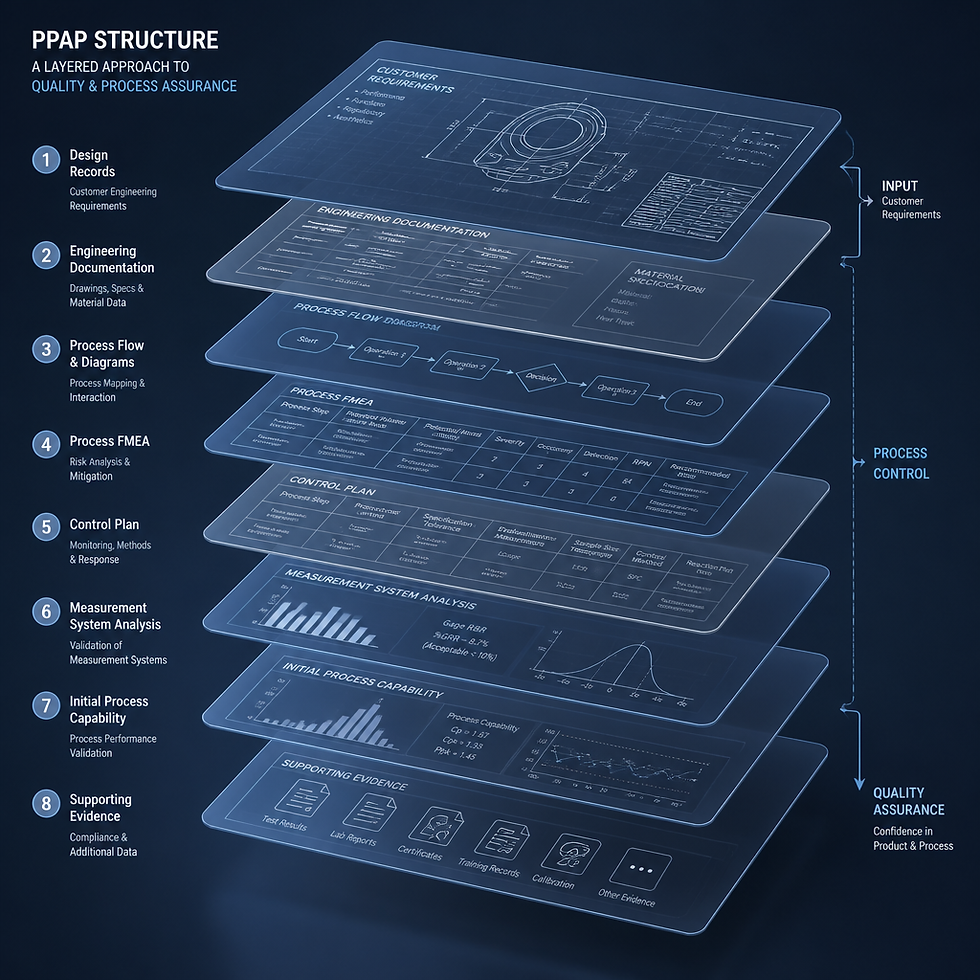

The 18 Elements of PPAP and Which Ones Matter Most in Machining
The AIAG PPAP manual defines 18 potential elements in a submission package. Not every submission requires all 18, since the level requested by the customer determines which elements are needed. But understanding the full scope tells you a great deal about what a capable machining supplier actually has to manage.
Design and Process Documentation Elements
These include design records (the actual engineering drawing or model), engineering change documentation, customer engineering approval records, and the process flow diagram. They establish that the supplier understands what they are supposed to make and how the process is structured to make it.
A common mistake among shops new to PPAP is treating these as paperwork formalities. In practice, a process flow diagram written for PPAP purposes often uncovers undocumented steps that later become sources of variation. The act of documenting is itself a quality discipline.
Measurement and Inspection Elements
This is where machining suppliers either prove competence or expose gaps. The dimensional results element requires that all characteristics on the print are measured and reported, typically using CMM equipment. The measurement system analysis (MSA or gauge R&R study) requires proof that the measurement equipment being used is capable of detecting the variation it is supposed to detect.
For high-precision components with tight tolerances, gauge R&R failures are surprisingly common. If a shop is measuring a feature with a 0.001-inch tolerance but their measurement system contributes 40 percent of the total allowable variation, the gauge R&R will fail. Shops without a rigorous calibration program and A2LA-level measurement discipline often discover this the hard way during PPAP submission.
Process Capability and Control Plan Elements
The process capability study (Cpk/Ppk data) and control plan are the forward-looking components of PPAP. They ask: not just did this part pass inspection, but is the process inherently stable enough to keep passing inspection? A Cpk of 1.67 or higher is commonly required for critical characteristics in automotive and aerospace applications.
The control plan is a living document that should reference the specific machines, tooling, inspection frequency, and reaction plans tied to your machining process. A generic control plan copy-pasted from a template is a red flag that tells you the supplier has not actually mapped their process.
Pro tip: When qualifying a machining supplier, ask specifically to see their most recent gauge R&R study for a similar feature type. A supplier who can produce one quickly and explain it is demonstrating real measurement discipline. A supplier who has to locate it is telling you something important about how seriously they treat measurement systems.
First Article Inspection Services: The Anchor of Any PPAP Package
First article inspection services are the physical verification step that ties the entire PPAP package together. An FAI report documents that a production part, manufactured using the actual production process, tools, and equipment, conforms to every dimension and requirement on the engineering drawing.
FAI is not a prototype inspection. It is not an in-process check. It is a full dimensional report on a part produced exactly as it will be in production, using production tooling, production machines, and the operators who will run the job. This distinction matters because suppliers sometimes submit FAI reports from a pre-production setup that does not reflect actual run conditions.
What a Complete FAI Report Contains
A proper first article inspection report includes a full ballooned drawing with every characteristic numbered, a dimensional results table showing the nominal, tolerance, and actual measured value for each characteristic, and the measurement method used for each. Material certifications, surface finish measurements, and any special characteristic results are included as supporting attachments.
For suppliers like SCPM who use CMM equipment for dimensional inspection, the CMM report printout is attached directly to the FAI package. This provides traceability: the measurement was made with a specific calibrated instrument, at a specific date and time, by a qualified operator.
AS9102 and First Article Inspection for Aerospace
In aerospace machining, the FAI standard is AS9102 (First Article Inspection Requirement), published by the Aerospace Industries Association. AS9102 is structurally similar to PPAP FAI requirements but adds specific requirements around design characteristics, functional testing, and accountability traceability. If your supplier supports aerospace customers, they should be familiar with both PPAP FAI conventions and AS9102 requirements. These are not interchangeable without understanding the specific customer requirement.
"The purpose of First Article Inspection is to provide objective evidence that all engineering design and specification requirements are properly understood, accounted for, verified, and documented." - Aerospace Industries Association, AS9102 Revision B
CMM Programming and Inspection: The Technical Backbone
CMM programming inspection capability is the single most reliable indicator of whether a precision machining supplier can actually support a complete PPAP package. Coordinate Measuring Machines provide the traceable, repeatable dimensional data that PPAP documentation requires. Without CMM capability, a shop is limited to hand-gauge measurements, which are acceptable for some features but inadequate for complex geometries, true position callouts, profile tolerances, and GD&T-heavy drawings.
What CMM Programming Actually Involves
CMM programming is not simply placing a part on a table and pressing a button. A skilled CMM programmer analyzes the engineering drawing, identifies the datum reference frame, writes a measurement routine that captures every required characteristic in the correct sequence, and validates the routine against known artifact standards. For a complex machined part, this can take several hours of programming time before a single part is measured.
In practice, shops that treat CMM programming as an afterthought or outsource it cannot turn around PPAP packages on reasonable timelines. For contract manufacturers serving production customers, in-house CMM programming is not a premium service. It is table stakes.
CMM Programming for 5-Axis Machined Components
Five-axis machined components present specific CMM challenges because of complex compound angles, deep cavities, and features that require specialized probe configurations to reach. A supplier with genuine 5-axis machining capability should have equivalent CMM programming expertise. If a shop can machine a complex aerospace bracket but cannot measure it completely with their CMM, the PPAP package will have gaps that no customer quality engineer will accept.
SCPM's combination of 5-axis CNC milling capability and in-house CMM programming is precisely the pairing that makes comprehensive PPAP support possible. The machining and inspection capabilities have to scale together.
Pro tip: Ask your supplier what CMM software platform they use (common platforms include PC-DMIS, Calypso, and Renishaw MODUS) and whether their programmers are trained and certified on it. An untrained CMM operator using powerful software can produce convincingly formatted but metrologically flawed reports. Certification matters.
PPAP Submission Levels Explained
PPAP submissions are categorized into five levels, and the level required is always specified by the customer. Understanding these levels helps you verify that your supplier is delivering what is actually required, not just what is easiest.
Level 1 requires only the Part Submission Warrant with limited supporting data retained at the supplier. Level 2 requires the PSW plus product samples and limited supporting data. Level 3 is the most common requirement for new production parts and requires the complete PPAP documentation package with product samples. Level 4 requires the PSW plus other requirements defined by the customer. Level 5 requires the full documentation package reviewed at the supplier's facility.
The data consistently shows that most quality rejections at the customer end are Level 3 submissions where supporting elements were incomplete or where the dimensional data did not represent the actual production process. A supplier who says "we do PPAP" but only regularly handles Level 1 or 2 submissions may not be equipped for a full Level 3 submission without significant ramp-up time.
PPAP vs. FAI vs. ISO Inspection: Understanding the Differences
Quality documentation terminology gets misused frequently in supplier conversations. Understanding the real distinctions prevents costly miscommunications during production launch.
Documentation Type
Scope and Purpose
When It Is Required
PPAP (Production Part Approval Process)
Comprehensive process and product approval package with up to 18 elements. Validates that the entire production process is controlled and capable. Originated in AIAG automotive standards.
New production parts, engineering changes, supplier changes, or process changes in automotive, aerospace, and industrial supply chains.
FAI (First Article Inspection)
Physical dimensional verification of a production part against the engineering drawing. Typically one element within a PPAP but can also stand alone as a customer requirement. Aerospace FAI follows AS9102.
Any new part entering production, any significant process or tooling change. Frequently required as a standalone deliverable independent of full PPAP.
ISO 9001 / ISO 13485 Inspection Support
System-level quality management requirements that define how a supplier must operate their quality processes, including document control, inspection records, calibration, and corrective action. ISO 13485 is specific to medical device manufacturing.
Required as a supplier qualification baseline by customers in medical, aerospace, and defense sectors. Does not replace PPAP or FAI but provides the quality management framework within which they operate.
ISO 13485 and Medical Device Machining: A Related Standard Worth Knowing
ISO 13485 contract manufacturing is the quality management system standard specific to organizations that design, produce, install, or service medical devices. For precision machined components used in medical applications, ISO 13485 certification is often a hard requirement, and it carries documentation obligations that parallel PPAP requirements in rigor.
The standard requires comprehensive design and production records, traceability to raw material lot numbers, and documented verification of inspection results. Sound familiar? The discipline required to support PPAP documentation in automotive machining translates directly to the documentation requirements in ISO 13485 environments. Suppliers who have built their quality infrastructure around PPAP tend to adapt more easily to ISO 13485 requirements than shops who have operated informally.
The key difference is that ISO 13485 places additional emphasis on risk management, complaint handling, and post-market surveillance, which is beyond the scope of machining suppliers in most cases. What machining suppliers are responsible for is the production records, in-process inspection, and traceability elements, all of which are covered by a well-run PPAP-capable quality system.
How to Evaluate Whether a Precision Machining Supplier Can Actually Support PPAP
Most precision machine shops will claim they support PPAP if you ask them. The question is how to verify that claim before you are staring at a launch deadline with an incomplete submission package. There are specific things to look for and ask.
Accreditation and Calibration Infrastructure
A2LA accreditation (American Association for Laboratory Accreditation) to ISO/IEC 17025 is the clearest external signal that a supplier's measurement systems are maintained, calibrated, and operated according to internationally recognized standards. This accreditation covers the calibration of all measurement equipment used in inspection, which directly affects the validity of any dimensional data in a PPAP package.
Suppliers without external accreditation are not automatically disqualified, but you should ask detailed questions about their calibration program: What is the calibration interval for their CMM? Who calibrates it and to what traceable standard? What happens to parts measured with equipment that is later found to be out of calibration? A supplier who answers these questions fluently has a real program. A supplier who hesitates does not.
In-House Documentation Capability
Precision inspection support for PPAP means more than measuring parts. It means generating properly formatted documentation, managing revision control, maintaining retention records, and coordinating the submission with the customer's supplier quality team. Ask a potential supplier to show you a sample PPAP package (with customer information redacted). The format, completeness, and organization of that sample will tell you more than any sales conversation.
Fort Wayne and the surrounding industrial region have a number of precision machining suppliers. What separates a genuinely PPAP-capable shop from one that handles PPAP as an occasional side request is whether quality infrastructure is built into their daily workflow, not assembled on demand when a customer requires it.
Gauge and Fixturing Capability for Inspection
PPAP gauge R&R studies require dedicated gauging, and for complex machined parts, that often means custom fixtures or dedicated gauge equipment. Suppliers who offer fixturing services in-house can design and build inspection fixtures as part of the PPAP process, ensuring that the measurement method used during production is the same one that was validated during the PPAP study. This closed loop is essential for valid process capability data.
Pro tip: During supplier qualification, ask specifically about their most recent rejected PPAP submission and what caused the rejection. A supplier who can describe a specific rejection, the root cause, and the corrective action demonstrates mature quality awareness. A supplier who claims they have never had a PPAP rejected is either very new to the process or not being straightforward with you.
Frequently Asked Questions
What does PPAP documentation include for a precision machined part?
A full Level 3 PPAP package for a precision machined part typically includes the design record (engineering drawing), the process flow diagram, the Process Failure Mode and Effects Analysis (PFMEA), the control plan, measurement system analysis (gauge R&R), dimensional results from a full first article inspection, material certifications, process capability study results (Cpk/Ppk), and the signed Part Submission Warrant. For machined parts, the CMM dimensional report is the central inspection document tying the package together.
How is first article inspection different from standard production inspection?
First article inspection is a comprehensive, one-time verification of every characteristic on the engineering drawing, performed on a part manufactured under actual production conditions. Standard production inspection typically covers critical or selected characteristics on a sampling basis as parts are produced. FAI proves the process is set up correctly before volume production begins. Production inspection monitors that it stays in control during the run.
Do non-automotive manufacturers need to provide PPAP documentation?
Yes, and with increasing frequency. While PPAP is an AIAG automotive standard, customers in aerospace, defense, heavy equipment, and industrial manufacturing regularly require PPAP-equivalent documentation packages. The structure may vary slightly, but the underlying requirement is the same: prove that your process is controlled and capable before parts enter production use. Any precision machining supplier serving industrial customers needs to be comfortable with this level of documentation regardless of whether their customer calls it PPAP or something else.
What is the minimum CMM capability needed to support PPAP inspection?
At minimum, a supplier needs a calibrated CMM with software capable of GD&T analysis, a trained CMM programmer who can write measurement routines from engineering drawings, and a calibration program traceable to NIST standards. For complex 5-axis machined parts with tight positional tolerances, a multi-axis CMM with appropriate probe configurations is necessary. Shops relying solely on hand gauges cannot produce the full-dimensional reports and measurement system analysis data required for a complete PPAP package.
What does dimensional inspection Fort Wayne suppliers should provide actually look like in practice?
A Fort Wayne precision machining supplier supporting dimensional inspection for PPAP should provide a CMM report showing every ballooned characteristic from the drawing with nominal, tolerance, and actual measured values. The report should reference the calibration status of the measurement equipment, the datum reference frame used, and the inspection date. Supporting documents include material certs, surface finish results if required, and any special process records. The format should be organized well enough that a customer quality engineer can audit it without requiring interpretation from the supplier.
How does A2LA accreditation support PPAP submissions?
A2LA accreditation to ISO/IEC 17025 confirms that a supplier's measurement laboratory operates under a documented quality management system with verified calibration traceability. When inspection data in a PPAP package comes from an A2LA-accredited lab, the customer has independent confirmation that the measurement systems are controlled and capable. This significantly reduces the likelihood of measurement system analysis failures and gives customer quality teams confidence in the dimensional data without requiring them to audit the supplier's calibration records themselves.
Have you worked with a precision machining supplier where PPAP documentation became a bottleneck, or found practices that made the process go more smoothly? Share your experience in the comments or reach out directly.
